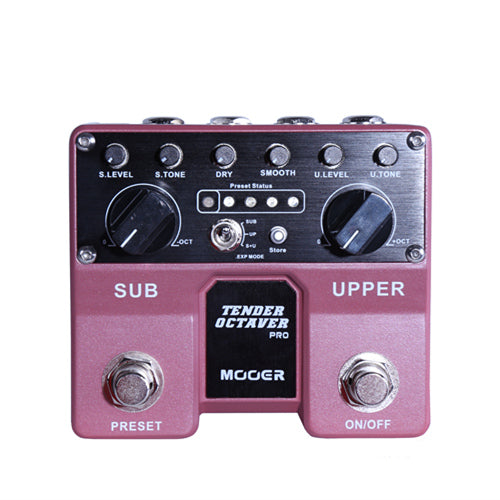

MOOER Tender Octaver Pro
Product Features——Separate volume, tone and pitch controls for both sub and upper octaves
S.LEVEL：Adjusts output volume of sub octave
S.TONE：Adjusts tonality of sub octave
SUB：Adjusts the pitch of the sub voice. Can be set anywhere between -1 octave and unity with the dry signal
U.LEVEL：Adjusts the output volume of the upper octave
U.TONE：Adjusts tonality of upper octave
UPPER：Adjusts the pitch of the upper voice. Can be set anywhere between +1 octave and unity with the dry signal
——DRY：Adjusts output volume of the dry guitar signal——SMOOTH： control for automatic volume swells——Store and recall up to 4 user presets
PRESET FOOTSWITCH：Press this footswitch to change the selected preset (Left most LED is Pedal mode in which all parameter values are depicted by the pedal controls)
STORE：Used for saving presets
——External connection for expression pedal to control octave pitches
EXP MODE：Depicts which voices the expression pedal will effect
——Stereo outputs and SetupSpecification
Input：1/4” mono audio jack.(Impedance: 1M Ohms) Output：1/4” mono audio jack(Impedance: 100 Ohms) Sampling rate: 44.1K Sampling accuracy: 24bit Power requirements: 9V DC 300mA , center negative. Dimensions: 106mm(D)X96mm(W)X53mm(H) Weight: 400g
