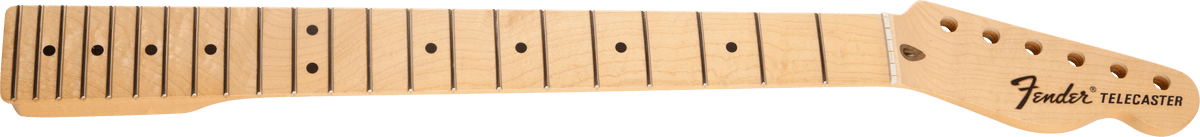

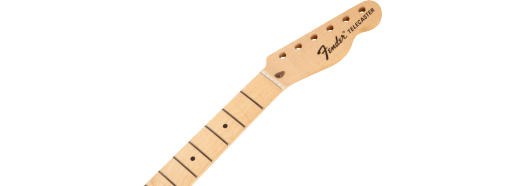

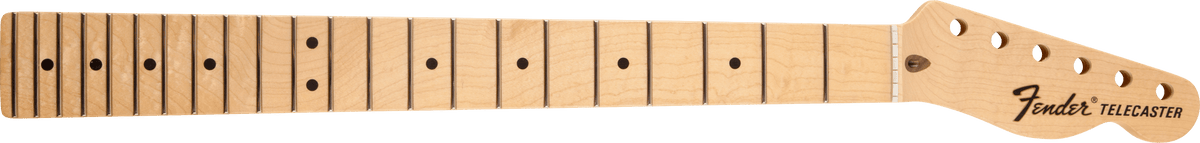

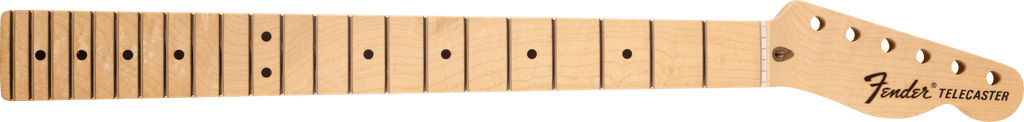

Genuine U.S.-made Fender Telecaster® guitar maple neck features a comfortable "modern C" profile and 9.5"-radius maple fingerboard with 22 jumbo frets and rolled edges, '70s-style headstock logo, and pre-slotted synthetic bone nut. Satin urethane finish for smooth feel.
Specifications and Features:
- Fingerboard: Maple
- Number of Frets: 22
- Fret Size: Jumbo
- Neck Shape: Modern "C"
- Neck Material: Maple
- Neck Finish: Satin Urethane
- Fingerboard Radius: 9.5" (241 mm)
- Scale Length: 25.5" (648 mm)
- Nut Material: Synthetic Bone (Melamine)
- Nut Width: 1.6875" (43 mm)
- Position Inlays: Black Dot
- 1/8" Truss Rod Adjustment Nut
- 6 Pre-Drilled Tuning Machine Holes with 2-Guide Pin Holes for Each Tuning Machine
- Each neck is serialized and stamped during quality inspection

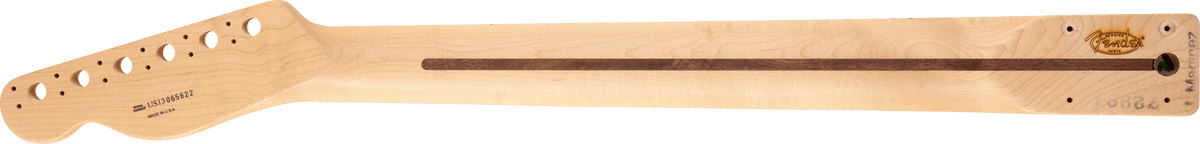

- Walnut "skunk" stripe on back of neck
- 70's-style Fender® Logo Decal
Each nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
Measurements:
- Peg Hole Diameter - .397" (10.08 mm)
- Headstock Thickness - .540" (13.71 mm)
- Thickness at the 1st Fret - .820" (20.82 mm)
- Thickness at the 12th Fret - .870" (22.09 mm)
Recommended Tuning Machines:
- Standard Series tuning machines (p/n 0037429000)
